Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

Luogo di origine:

Cina

Marca:

wenyou

Certificazione:

ISO9001, ISO14001, SGS, and UL

Numero di modello:

8517

Contattici
Richieda una citazione
Dettagli del prodotto
Classificazione:
Adesivi bicomponenti
Utilizzo:
Isolatori, trasformatori e altri prodotti isolanti
Applicazione:
Isolatori elettrici esterni per applicazioni a media e alta tensione
Apparizione della resina epossidica:
Liquido viscoso trasparente giallo-chiaro
Viscosità a 25°C:
1000 - 2500 mPa.s
Densità a 25°C:
1.16 - 1,20 g/cm3
Pressione del vapore a 25°C:
< 0,01 Pa
Punto d'infiammabilità:
Intorno a 135°C
descrizione:
Resina epossidica di fusione flessibile per l'incapsulamento della bobina del trasformatore - adatta
Valore epossidico:
4.5 - 5.0Eq/kg
Termini di trasporto & di pagamento
Quantità di ordine minimo
20 kg/balde in campione
Prezzo
Negoziabile
Imballaggi particolari
20 kg/balde, 220 kg/barile, 1200 kg/serbatoio
Tempi di consegna
7 - 10 giorni lavorativi
Termini di pagamento
Normalmente T/T, L/C
Capacità di alimentazione
Molte materie prime in magazzino
Descrizione di prodotto
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images

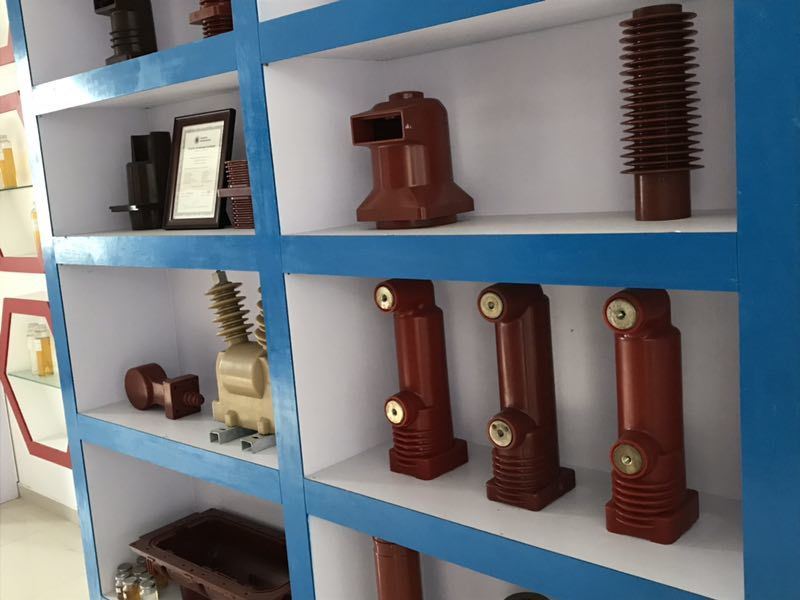

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0

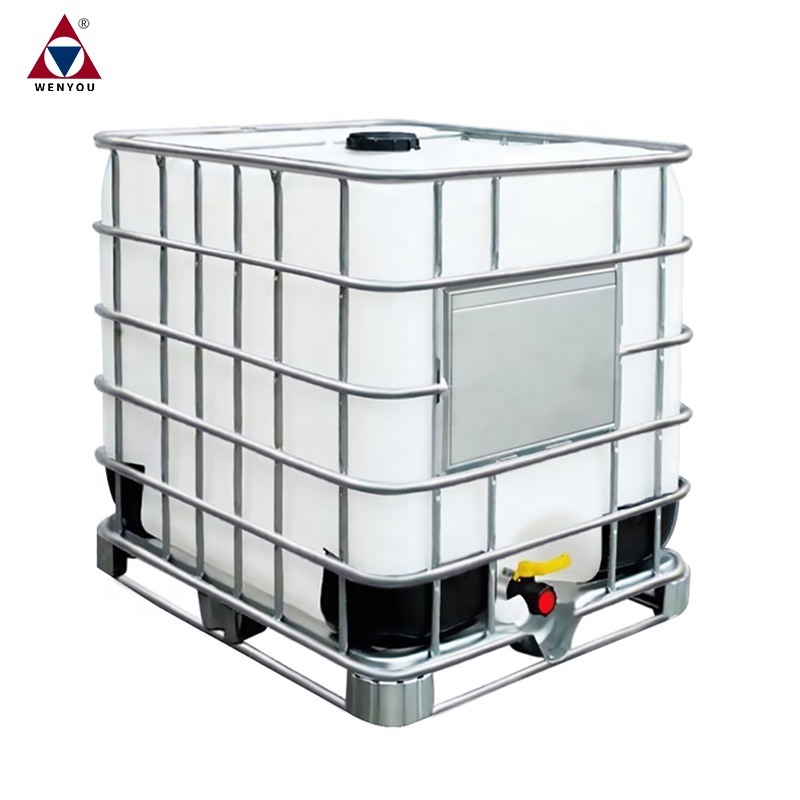

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1

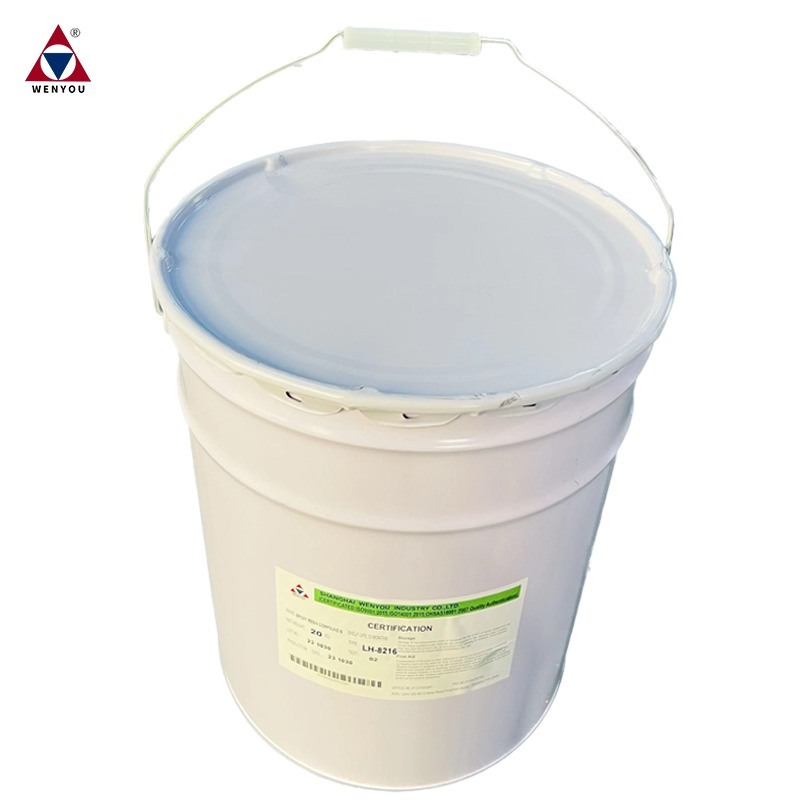

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2

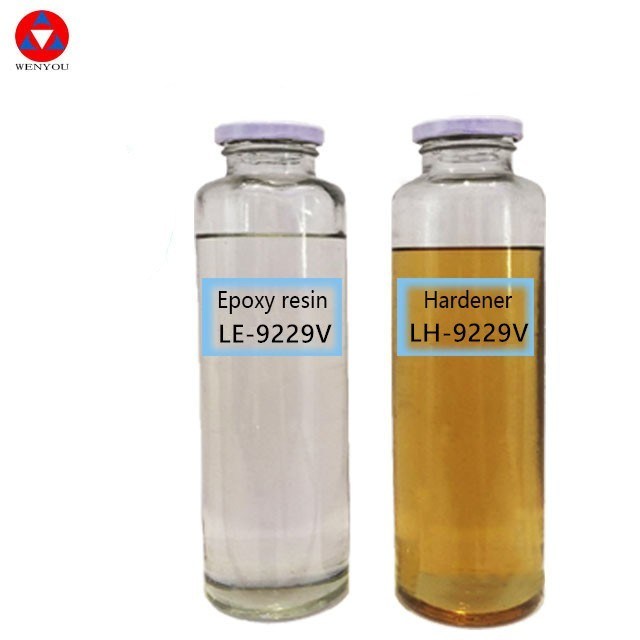

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
