High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation

High-Tg Epoxy Resin

UV/Weather-Resistant Electrical Insulating Epoxy

High Dielectric Strength Potting Compound

Luogo di origine:

Cina

Marca:

wenyou

Certificazione:

ISO9001, ISO14001, SGS, and UL

Numero di modello:

8216

Contattici
Richieda una citazione
Dettagli del prodotto
Classificazione:
Adesivi bicomponenti
Utilizzo:
Isolatori, trasformatori e altri prodotti isolanti
Applicazione:
Isolatori elettrici per applicazioni a media e alta tensione
Apparizione della resina epossidica:
Liquido viscoso trasparente giallo-chiaro
Viscosità a 25°C:
9500 - 15500 mPa.s.
Densità a 25°C:
1.16 - 1,20 g/cm3
Pressione del vapore a 25°C:
< 0,01 Pa
Punto d'infiammabilità:
circa 145°C
descrizione:
Produttore di resina epossidica certificata UL materiale ignifuge per applicazioni interne e esterne
Termini di trasporto & di pagamento
Quantità di ordine minimo
20 kg/balde in campione
Prezzo
Negoziabile
Imballaggi particolari

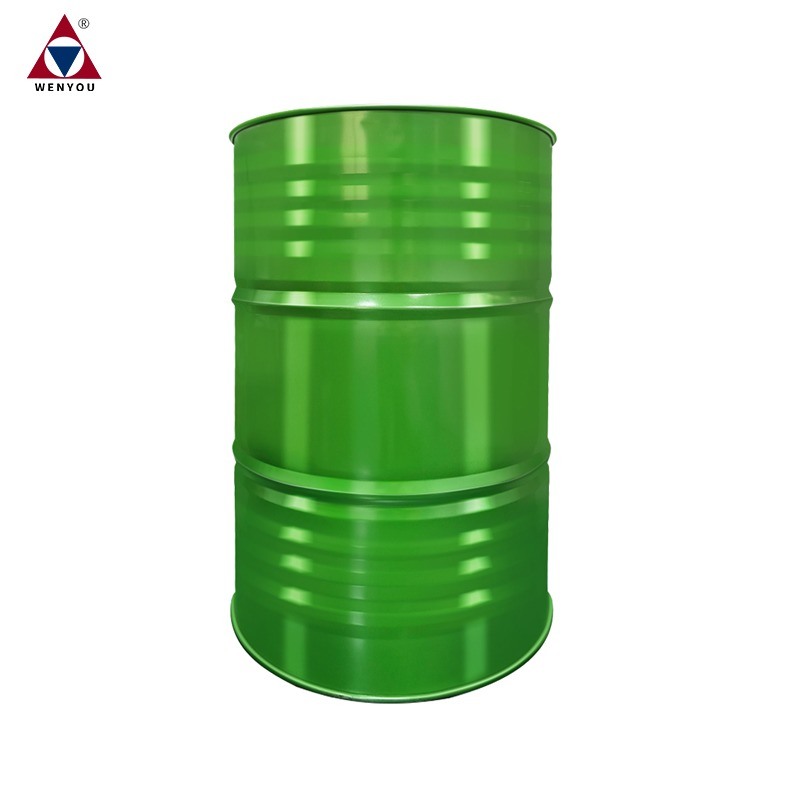

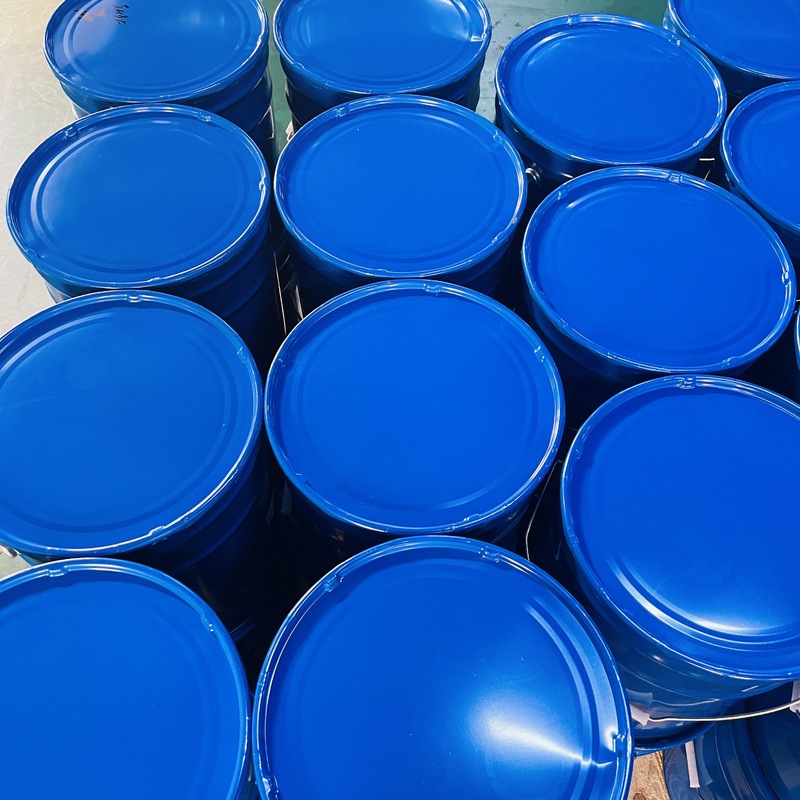

20 kg/balde, 220 kg/barile, 1200 kg/serbatoio
Tempi di consegna
7 - 10 giorni lavorativi
Termini di pagamento
Normalmente T/T, L/C
Capacità di alimentazione
Molte materie prime in magazzino
Descrizione di prodotto
High-Tg Epoxy Resin for APG Process | Vacuum Casting & Electrical Insulating
LE-8216/LH-8216: UL-Certified Room Temperature Cure Epoxy for CT/PT Potting & Encapsulation
Flame-Retardant | UV/Weather-Resistant | High Dielectric Strength

Engineered for transformer encapsulation in Current Transformers (CT) and Potential Transformers (PT), LE-8216/LH-8216 delivers fast room temperature curing, eliminating energy-intensive ovens. This UL-certified, flame-retardant epoxy system combines a modified cyclic aliphatic epoxy resin (LE-8216) and weather-resistant anhydride hardener (LH-8216) for superior electrical insulation, moisture resistance, and vibration damping in demanding indoor/outdoor environments.

Key Features & Benefits
  • Fast Ambient Cure: Saves energy with rapid curing at room temperature.
  • Robust Protection: Shields CT/PT units from thermal shock, contaminants, and mechanical stress.
  • Superior Insulation: High dielectric strength (>18 kV/mm) for high-voltage applications.
  • Flame Retardant: UL 94 V-0 certified for safety-critical installations.
  • Weatherproof: Exceptional UV/environmental resilience for outdoor use.
  • Low-Viscosity Formulation: Penetrates intricate coils for void-free gap filling.
Applications

Ideal for:

  • Transformer potting & encapsulation (CT/PT units)

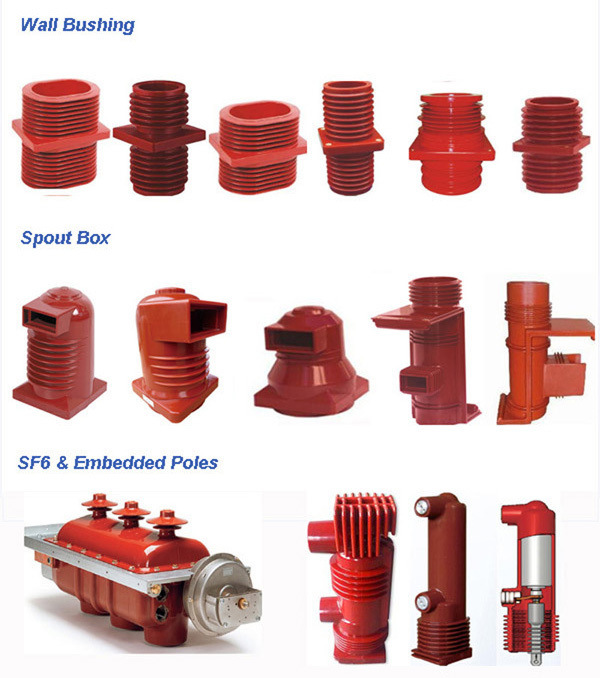

  • Medium/high-voltage insulators, bushings, and switchgear
  • Electrical components requiring moisture-resistant protection
  • Flame-retardant insulation in power infrastructure
Processing Methods
Method Description
Vacuum Gravity Casting Traditional method for bubble-free transformer encapsulation under vacuum.
Automatic Pressure Gelation (APG) High-efficiency process for mass production of CT PT epoxy components.
Material Properties
Property Value/Description
Curing Temperature Room temperature (20-25°C)
Dielectric Strength >18 kV/mm
Thermal Shock Resistance Excellent (ASTM D2519)
Viscosity Low (optimized for deep gap filling)
Flame Rating UL 94 V-0 certified
Color Options Customizable via LC-series paste
Formulation Guide
Component Product Proportion (pbw)
Epoxy Resin LE-8216 100
Hardener LH-8216 100
Filler Silica Powder 280-350
Colorant LC-Series* 3

*Add LC-series paste for UV-stable pigmentation.

Why Choose LE-8216/LH-8216?

This electrical-grade epoxy system excels as a potting compound for transformer manufacturing, offering unmatched electrical component protection. Its saturated cyclic aliphatic structure ensures long-term stability under thermal cycling, while silica-filled reinforcement enhances mechanical strength and dielectric performance. Compatible with vacuum casting and APG processes, it integrates seamlessly into existing production lines--ideal for creating reliable, flame-retardant CT/PT encapsulation with minimal energy input.

High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 0
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 1
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 2
High-Tg UV/Weather-Resistant Electrical Insulating Epoxy Resin with High Dielectric Strength for Transformer Encapsulation 3
Keywords: Room temperature cure epoxy, CT PT epoxy, transformer potting, transformer encapsulation, electrical insulation epoxy, potting compound, flame retardant epoxy, UL certified epoxy, dielectric strength, vibration damping, moisture resistant, gap filling, electrical component protection, fast cure epoxy, low viscosity epoxy, thermal shock resistance, UV resistance, Automatic Pressure Gelation, vacuum casting.
